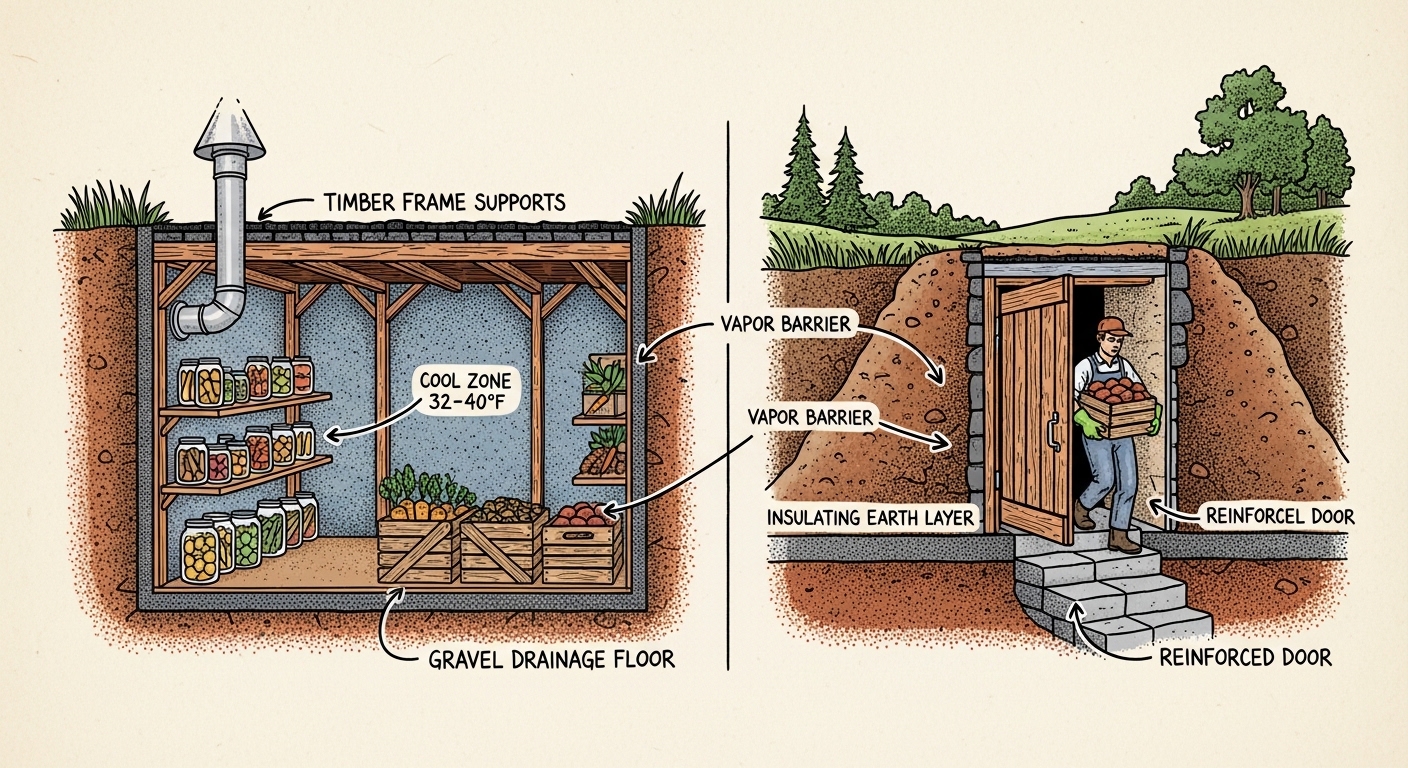

DIY Root Cellar: How to Build a Low-Cost Food Storage Cellar
Quick answer
Build a DIY root cellar by selecting a cool, well-drained site, providing reliable drainage, constructing insulated, waterproof walls and roof, adding two vents (low intake, high exhaust), installing an insulated door, and monitoring to reach storage conditions of 32-40°F (0-4°C) and 85-95% RH. Start small. A 6x8 ft cellar is a good beginner size. Test conditions for several weeks before full stocking and check local codes for permits and buried utilities.
Check site-specific requirements: frost depth, water table, soil stability, and permitting vary by location. Contact local building authorities or an engineer for large or deep excavations.
Quick steps
- Location: basement corner, north-facing slope, or buried room with good drainage. Avoid low spots and large roots.
- Excavation: dig to planned depth and check utility maps first.
- Drainage: gravel base and/or perforated pipe to a dry well or sump; slope the floor toward the drain.
- Structure: concrete block, poured concrete, or pressure-treated/rot-resistant timber with exterior waterproofing.
- Ventilation: two vents, intake low and exhaust high; screen vents to exclude pests and add dampers to adjust airflow.
- Door: insulated, weatherstripped; add a vestibule or double-door in very cold climates.
- Target conditions: 32-40°F (0-4°C) and 85-95% RH for many root crops.
- Test: monitor temperature and humidity for several weeks before stocking.
What is a DIY root cellar?
A DIY root cellar is a purpose-built, passively cooled storage space that uses soil thermal mass, controlled ventilation, and humidity management to extend the shelf life of produce without continuous refrigeration. It uses straightforward materials and passive systems. Suitable for off-grid or low-energy storage.
Why build one?
- Store potatoes, carrots, apples, cabbage, and winter squash without running a fridge all season.
- Reduce food waste and make bulk buying or extended harvest storage practical.
- Provide reliable food storage for emergency preparedness and off-grid living.
- Most small builds require only basic carpentry or masonry skills and common materials.
Target conditions
Aim for:
- Temperature: 32-40°F (0-4°C), crop dependent. Short answer: near freezing but above it.
- Humidity: 85-95% RH for most root crops. Apples prefer drier air.
- Airflow: gentle continuous exchange via two vents, one low intake and one high exhaust.
Materials and tools
- Structural: concrete block, poured concrete, or pressure-treated/rot-resistant lumber
- Drainage: gravel, perforated pipe, French drain or drain tile
- Waterproofing: exterior membrane or waterproof coating
- Insulation: rigid foam board for roof and door as needed
- Ventilation: PVC or metal pipe with mesh or hardware cloth and adjustable dampers
- Door: insulated exterior door or custom insulated hatch with weatherstripping
- Storage: treated shelving, breathable crates, hanging racks
- Monitoring: thermometer and hygrometer
- Tools: shovel, pick, wheelbarrow, level, drill/driver, saw, masonry tools, safety gear
Step-by-step build
-
Choose the location
- Prefer cool, well-drained sites such as a basement corner, north-facing slope, or hillside. Avoid standing water and large roots. Call before you dig to locate utilities.
-
Decide type and size
- Options: below-grade pit, hillside-buried, or basement corner unit. A 6x8 ft cellar works well for a beginner.
-
Plan drainage and moisture control
- Place several inches of compacted gravel under the floor and/or run a perforated drain pipe to a dry well or sump. Slope concrete floors slightly toward the drain.
-
Excavate and prepare foundation
- Allow for wall thickness and insulation. In cold climates consider going below the local frost line if appropriate.
-
Build floor and walls
- Floor options: compacted earth with gravel to maintain humidity, or a concrete slab for easier cleaning. Walls: concrete block, poured concrete, or treated timber with exterior waterproofing. Backfill with free-draining material.
-
Add roof and earth cover
- Waterproof and insulate the roof when buried. Design it to handle soil and snow loads.
-
Install ventilation
- Install two vents: one intake near the floor and one exhaust near the ceiling. Add adjustable dampers and screen vents to keep pests out. Test airflow before filling the cellar.
-
Install door and seals
- Use an insulated, weatherstripped door. In very cold areas add a vestibule or double-door arrangement to reduce heat exchange.
-
Arrange shelving and zones
- Place the coldest crops, like potatoes and carrots, on lower shelves. Store onions and apples on upper shelves. Keep apples separate to prevent ethylene damage.
-
Test and adjust
- Monitor temperature and humidity for several weeks. Use damp sand or gravel to raise humidity, and increase ventilation to lower it.
What stores well
- Potatoes, carrots, beets, turnips, parsnips
- Onions and garlic, after curing
- Apples and cabbage, stored separately from ethylene producers
- Winter squash and pumpkins, after curing and kept drier than root crops
Storage prep: do not wash root crops before storage. Remove loose soil and keep skins intact. Follow crop-specific curing guidelines for onions, garlic, and squash.
Operation and maintenance tips
- Log temperature and humidity throughout the season.
- Open vents in warm weather; reduce airflow in very cold weather.
- Raise humidity with a gravel or dirt floor, or damp sand. Lower humidity by increasing ventilation.
- Separate ethylene producers like apples from sensitive items.
- Screen vents, seal gaps, and keep the cellar clean to deter pests.
- Label bins and rotate stock using first-in, first-out.
Common pitfalls and fixes
- Poor drainage: add a gravel base or French drain and waterproof exterior walls.
- Insufficient ventilation: make sure you have both intake and exhaust vents and test airflow before stocking.
- Oversizing: build a modest first unit to learn your cellar’s microclimate.
- Mixing incompatible crops: separate ethylene producers from sensitive items.
- Not monitoring: regular checks prevent mold, pests, and rot.
Safety, permits, and legal notes
- Locate underground utilities before digging.
- Permit requirements vary. Large excavations, structural roofs, or retaining walls may require permits and engineered plans. Verify with your local building authority.
- High water tables or unstable soils can make buried cellars impractical. Consider above-ground insulated designs in those cases.
FAQ
Q: What temperature and humidity should I aim for? A: Aim for 32-40°F (0-4°C) and 85-95% RH for many root crops. Apples need slightly drier air.
Q: Can I build a root cellar on a small lot or in a basement? A: Yes. Basement corners and compact buried units work if you provide drainage, ventilation, and insulation.
Q: Do I need permits or professionals? A: Small, non-structural builds may not need permits, but local rules vary. For deep excavations or structural roofs, consult local codes and consider an engineer.
A DIY root cellar extends your harvest with low energy and simple systems. Focus on drainage, ventilation, and monitoring. Start small, test for several weeks, and adjust ventilation and humidity until conditions match the crops you plan to store.
Recommended gear
- Thermometer and hygrometer
- Rigid insulation board
- PVC vent pipe and adjustable dampers
- Hardware cloth or mesh for vent screens
- Basic masonry or carpentry tools
Related resources
- INTERNAL_LINK: Becoming a Prepper: The Beginner’s Guide to Survival Readiness
- INTERNAL_LINK: Canned Goods and Other Edibles: Your First Steps to Stockpiling Food
- INTERNAL_LINK: Water, Water Everywhere: How to Store H2O Without Losing Your Sanity
Notes:
- Verify local frost depth. Frost line depth is location-dependent; dig below it only when appropriate.
- Verify with your local building authority. Permit rules and utility clearances vary by jurisdiction.
- Assess site-specific geotechnical conditions. High water tables or unstable soils may require alternatives or professional input.
